Graphs model connections — friends in a social network, roads between cities, links between web pages. Spec points 1.4.2(b) and (c) cover the graph data structure: directed and undirected graphs, and how they're represented with an adjacency matrix or an adjacency list. Exam questions ask you to draw a graph from a representation (or vice versa) and to contrast the two representations.
Let's define the graph, the three flavours you need, and the two ways to store one.
What is a graph?
A graph is a set of nodes (also called vertices) connected by edges (also called arcs). Unlike a tree, a graph has no hierarchy — any node can connect to any other, and the connections can form loops. Graphs are perfect for modelling networks of relationships.

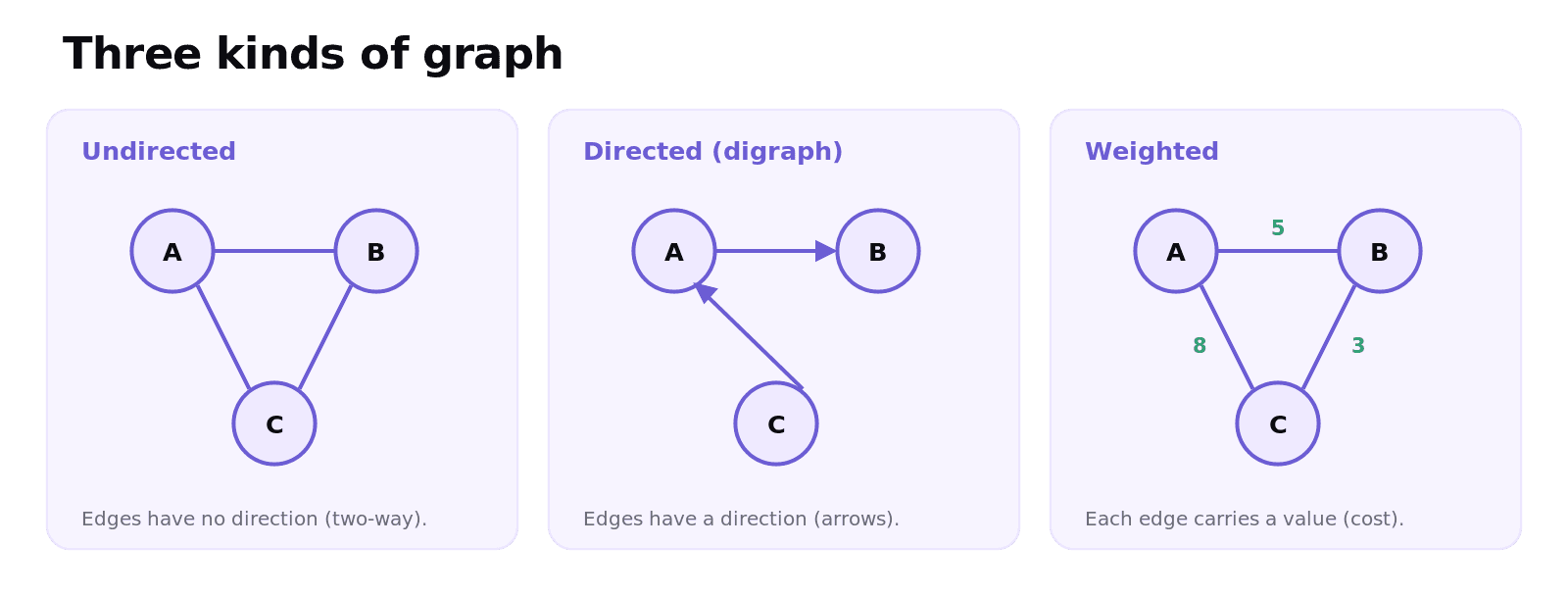

The three types you must know:
Undirected graph — edges have no direction; a connection between A and B works both ways (like a friendship: if A is friends with B, B is friends with A).
Directed graph (digraph) — edges have a direction, shown by an arrow; A → B does not imply B → A (like "follows" on social media, or one-way streets).
Weighted graph — each edge carries a weight (a value or cost), such as the distance or time between two cities. Weights can appear on directed or undirected graphs.
Representing a graph: adjacency matrix
An adjacency matrix is a 2-D array (a grid) with one row and one column per node. Each cell records whether an edge exists between that pair of nodes: a 1 (or the weight) if there's an edge, 0 if not.
For an undirected graph the matrix is symmetrical (an edge A–B appears as both A,B and B,A).
For a directed graph it isn't — A→B fills one cell but not the reverse.
For a weighted graph, store the weight in the cell instead of a 1.
A matrix makes it instant to check whether two specific nodes are connected, and easy to add or remove an edge. The downside: it uses space for every possible edge, so for a sparse graph (few edges) most of the grid is 0 — wasted memory.
Representing a graph: adjacency list
An adjacency list stores, for each node, a list of just the nodes it is directly connected to. It's often implemented as an array (or dictionary) of nodes, each pointing to a list of its neighbours.
This only stores edges that actually exist, so it's much more memory-efficient for sparse graphs. The trade-off: to check whether two specific nodes are connected, you have to search a node's list rather than reading one cell.
Choosing between them
Adjacency matrix | Adjacency list | |
|---|---|---|
Structure | 2-D grid (node × node) | List of neighbours per node |
Memory | Stores every possible edge | Stores only existing edges |
Best for | Dense graphs (many edges) | Sparse graphs (few edges) |
Check if A–B connected | Read one cell (fast) | Search A's list |
Add an edge | Set one cell | Add to a list |
The rule of thumb: a dense graph favours the matrix (it's compact and quick to query); a sparse graph favours the list (it avoids storing all those zeros).
Worked example

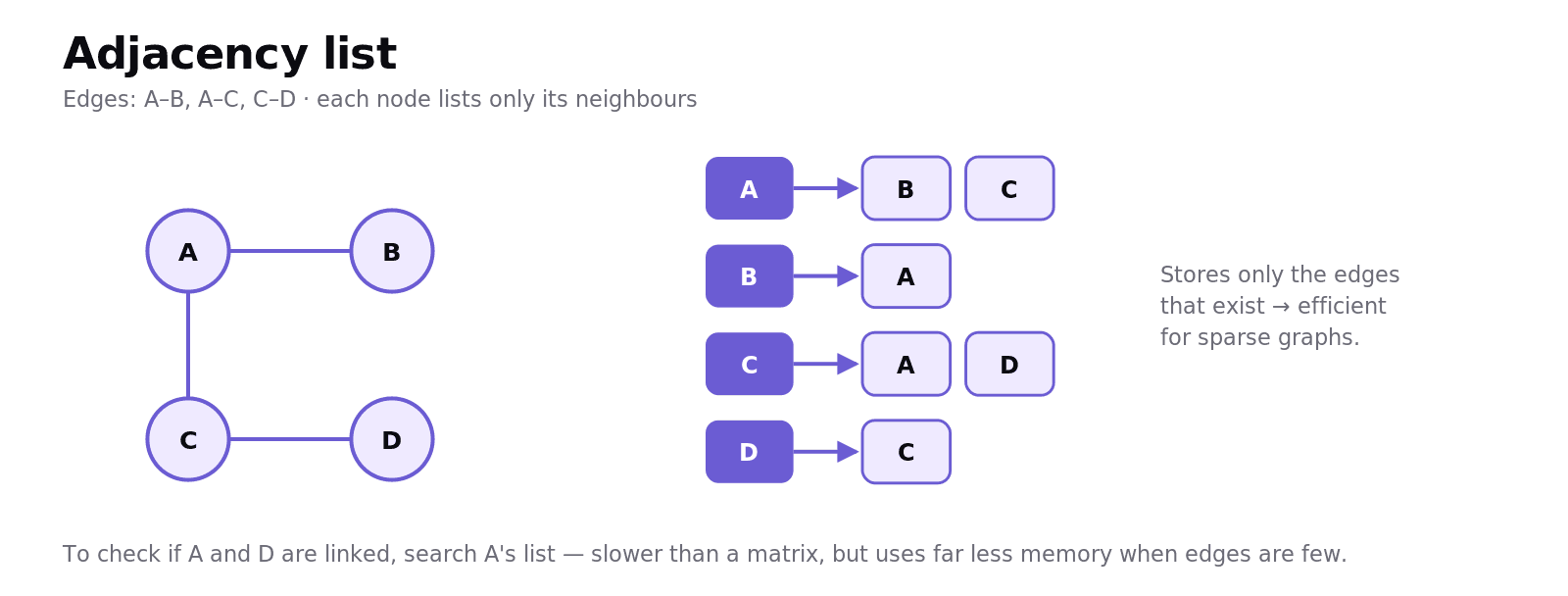

Take an undirected graph with nodes A, B, C, D where the edges are A–B, A–C and C–D. As an adjacency list: A → [B, C], B → [A], C → [A, D], D → [C]. As an adjacency matrix (rows/cols A,B,C,D) the 1s appear at A-B, B-A, A-C, C-A, C-D and D-C — symmetrical because the graph is undirected. Notice the list stores six entries while the matrix stores all sixteen cells (mostly 0) — for this sparse graph, the list is leaner.
Common exam mistakes
Forgetting symmetry. An undirected graph's adjacency matrix is symmetrical; a directed graph's is not.
Putting weights in the wrong place. For a weighted graph, store the weight in the matrix cell or alongside the neighbour in the list — not just a 1.
Mixing up matrix and list strengths. Matrix = quick edge check, good for dense graphs; list = memory-efficient, good for sparse graphs.
Confusing graphs with trees. A tree is a special graph with a hierarchy and no cycles; a general graph can have cycles and no root.
Drawing directed edges without arrows. Directed graphs must show the arrow direction.
Quick recap
A graph = nodes connected by edges; no hierarchy, can contain cycles.
Undirected (two-way edges), directed (one-way, arrows), weighted (edges carry a value).
Adjacency matrix: 2-D grid, a 1/weight per edge; symmetrical if undirected; best for dense graphs.
Adjacency list: each node lists its neighbours; stores only real edges; best for sparse graphs.
Matrix = fast edge lookup but more memory; list = memory-efficient but slower lookup.
